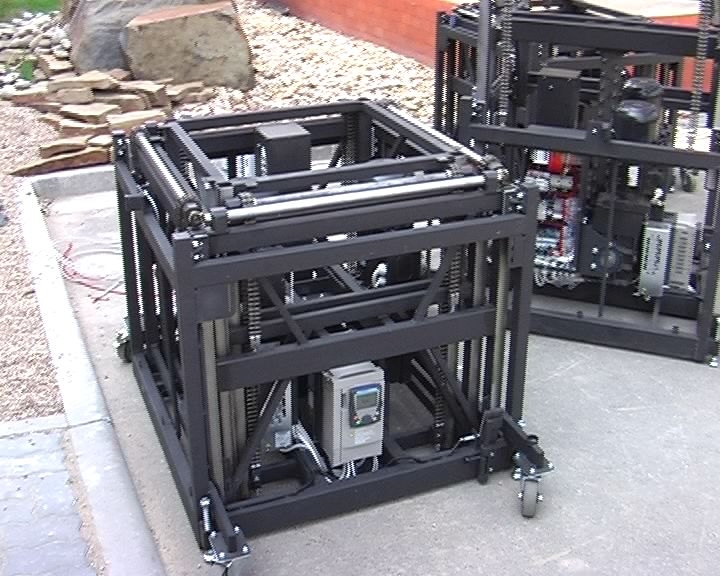

Chain trap cellar CH500

Standards
ČSN 918112
ČSN EN 1570
DIN 56950

Utilization
The telescopic trap cellar is portable and can be used for personal transportation or moving under the stage on the desired position under the opening in the stage floor. Due to its construction the whole trap cellar can be well stored. A synchronous operation of several devices and their placing side-by-side in pairs is possible.

Device description
The platform has telescopic conception with electromechanical drive for lifting by using the driving chain and conversion chains in single storeys of spatial construction with integrated guidings on edges of single parts. The platform moves between two defined height levels (operating positions). Screens are complemented to the platform as a safety element..

Technical data

Size	1000 x 1000 mm
Heiight	900 mm
Travel height	2000 mm
Lifting speed	1 - 50 cm/s
Static payload	500 kg
Dynamic payload	200 kg
Engine power	2 x 1,5 kW
Weight	460 kg
